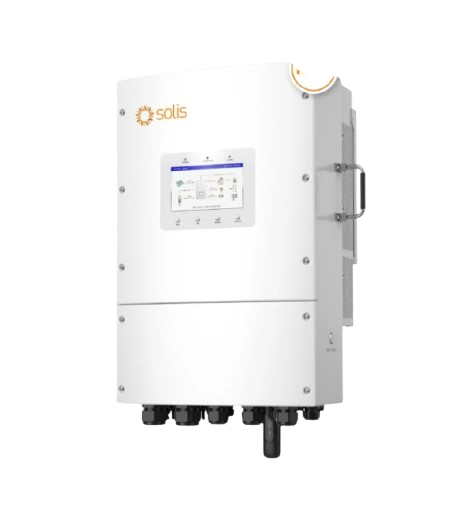

12 kW Solis Hybrid

Description

The 12 kW Solis Hybrid (Model: S6-EH3P12K-H) is a powerful three-phase hybrid solar inverter designed to deliver maximum energy efficiency, intelligent battery management, and seamless backup performance. Built for residential, commercial, and light industrial applications, this inverter integrates solar PV, battery storage, grid connectivity, and backup supply into one high-performance system.

If you are looking for a reliable, scalable, and future-ready energy solution, the 12 kW Solis Hybrid provides exceptional performance, safety, and smart monitoring features.

---

High-Efficiency Solar (DC) Input Performance

The 12 kW Solis Hybrid is engineered to maximize solar energy harvesting with advanced MPPT technology and high-voltage capability. With a maximum PV input voltage of 1000V and a recommended PV generator power of approximately 24 kW, this inverter ensures superior flexibility in system design.

Key Solar Input Features:

• Maximum usable PV input power: ~19.2 kW

• MPPT voltage range: 200V – 850V

• PV start-up voltage: ~160V

• 4 independent MPPTs for better string optimization

• Maximum input current per MPPT: 20A

• Maximum short-circuit current per MPPT: 30A

• MPPT efficiency up to 99.9%

With four MPPT trackers, the 12 kW Solis Hybrid allows multiple panel orientations and shading conditions without sacrificing performance. This makes it ideal for complex rooftops or commercial installations.

---

Advanced Lithium Battery Compatibility

Energy storage is a critical part of modern solar systems, and the 12 kW Solis Hybrid fully supports high-voltage lithium-ion batteries. With an operating voltage range of 120V to 800V, it provides flexibility for various battery configurations.

Battery Specifications:

• Maximum charge/discharge power: 12 kW

• Maximum battery current: ~50A

• High-voltage lithium battery compatibility

• Efficient PV-to-battery charging (up to 98.5%)

• Battery-to-AC efficiency: ~97.2%

The 12 kW Solis Hybrid ensures intelligent energy management by storing excess solar energy during the day and supplying power during peak hours or outages. This significantly reduces grid dependency and electricity bills.

---

Powerful Three-Phase AC Output & Backup

Designed for stable three-phase output, the 12 kW Solis Hybrid delivers reliable performance for homes, offices, factories, and commercial buildings.

AC Output Features:

• Rated output power: 12 kW (three-phase)

• Maximum apparent power: 12 kVA

• Rated AC voltage: 380/400V (3/N/PE)

• Rated frequency: 50/60 Hz

• Rated output current: ~18.2A / ~17.3A

• THDi: <3%

One of the most important features of the 12 kW Solis Hybrid is its fast backup capability. With a switchover time typically under 10 milliseconds, your essential loads continue running without interruption during power outages.

Backup Performance:

• Backup output: 12 kW

• Overload capability: Up to 2× rated power for approximately 10 seconds

This makes it ideal for critical loads such as servers, medical equipment, refrigeration systems, and industrial machinery.

---

Industry-Leading Efficiency

Efficiency directly impacts system savings and ROI. The 12 kW Solis Hybrid offers exceptional performance:

• Maximum inverter efficiency: ~97.7%

• EU efficiency: ~97.5%

• MPPT efficiency: ~99.9%

• PV-to-battery efficiency: ~98.5%

These high-efficiency ratings ensure that minimal energy is lost during conversion, allowing your solar system to deliver maximum output throughout the day.

---

Comprehensive Protection & Safety Standards

Safety is a top priority in any solar installation. The 12 kW Solis Hybrid is equipped with advanced protection mechanisms to ensure safe and compliant operation.

Built-in Protections:

• Anti-islanding protection

• Integrated DC switch

• DC reverse-polarity protection

• Surge protection

• Multiple grid compliance standards

• IP66-rated enclosure

With IP66 ingress protection, the 12 kW Solis Hybrid is resistant to dust and water, making it suitable for outdoor installations in harsh environments.

---

Smart Monitoring & Communication

Modern energy systems require intelligent monitoring and remote access. The 12 kW Solis Hybrid offers multiple communication interfaces for seamless integration and real-time tracking.

Communication Options:

• CAN

• RS485

• Ethernet

• Optional Wi-Fi and 4G/LAN modules

• Bluetooth connectivity

• Monitoring via SolisCloud app

With real-time monitoring, users can track solar generation, battery status, grid usage, and system performance directly from their smartphone or PC.

Additionally, the 12 kW Solis Hybrid supports parallel operation, allowing multiple units to work together for larger installations or future expansion.

---

Durable Design & Installation Flexibility

The 12 kW Solis Hybrid is built with a compact yet robust design that simplifies installation and maintenance.

Physical Specifications:

• Dimensions: approximately 563 × 546 × 243–250 mm

• Weight: around 31–35 kg

• Cooling: Passive/smart cooling system

The intelligent cooling system ensures stable performance without excessive noise, making it suitable for residential environments.

---

Wide Operating Conditions

Designed to perform in challenging climates, the 12 kW Solis Hybrid operates efficiently in a wide temperature range.

• Operating temperature: -25°C to +60°C

• Maximum operating altitude: up to ~4000 meters

Whether installed in hot regions or high-altitude areas, this inverter maintains stable output and long-term durability.

---

Why Choose the 12 kW Solis Hybrid?

Choosing the 12 kW Solis Hybrid means investing in a future-proof energy solution that combines:

• High solar input capacity

• Advanced battery integration

• Fast and reliable backup

• Exceptional efficiency

• Strong protection standards

• Smart cloud monitoring

• Scalable system design

For homeowners, businesses, and industries seeking reliable solar and storage solutions, the 12 kW Solis Hybrid delivers outstanding performance, energy independence, and long-term savings.

---

Final Thoughts

The 12 kW Solis Hybrid is a premium three-phase hybrid inverter built for high-performance solar systems. With powerful PV input capabilities, intelligent battery management, seamless backup functionality, and smart monitoring features, it stands out as a complete energy management solution.

If you want maximum efficiency, durability, and reliable backup in one system, the 12 kW Solis Hybrid is the ideal choice for your solar power investment.
