Description

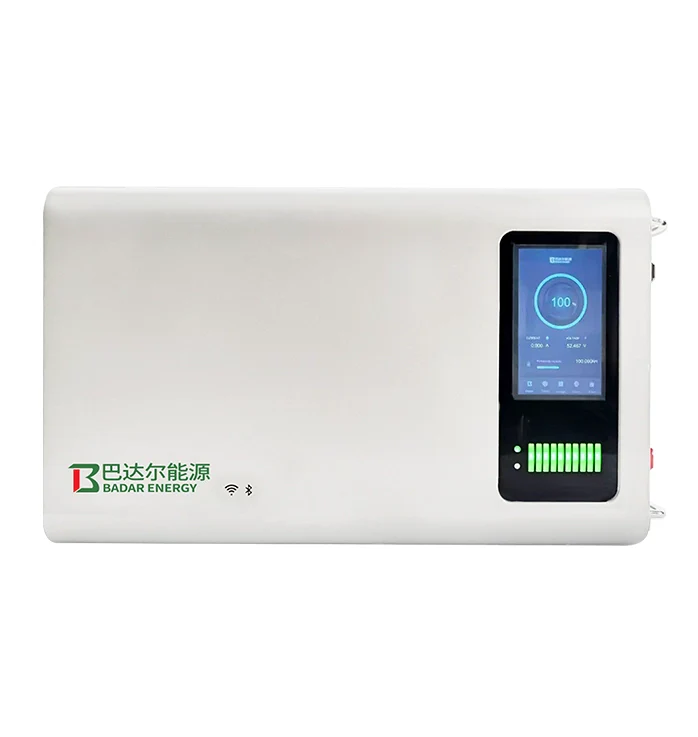

The Tiger Pro 5.12 kWh lithium battery (51.2V 100Ah) is engineered for high safety and reliable energy storage using advanced LiFePO₄ technology. With a 6000-cycle lifespan and a fireproof, wall-mounted design, it offers compact efficiency for both home and commercial use. Equipped with a smart BMS supporting CAN and RS485 communication, it ensures stable operation and easy system integration. The built-in Bluetooth (PACE EX) feature enables real-time monitoring through mobile devices. Tiger Pro provides complete protection against voltage, current, temperature, and short-circuit issues, making it a durable and secure choice for modern energy storage.
Features:
- Battery Type: LiFePO₄ (LFP) with 6000 cycles @ 80% DoD.
- Rated Energy: 5.12 kWh (51.2V 100Ah).
- Wall-mounted, compact, and fire-resistant design.
- Smart protection: over/under voltage, current, temperature, discharge, and short-circuit.
- Integrated BMS with CAN and RS485 communication.
- Bluetooth (PACE EX) monitoring via mobile app.
- Operating temperature: -20°C to 55°C (discharge).
- Extensible — connect up to 15 batteries in parallel.
| Model No. | 51.2V100AH-W |
|---|---|
| Battery Type | LiFePO₄ / LFP |
| Configuration | 16S1P |
| Rated Energy | 5.12 kWh |
| Nominal Voltage | 51.2 V |
| Working Voltage | 40 V to 58.4 V |
| Capacity | 100 Ah |
| Recommended Charge Current | ≤ 50 A |
| Max. Charge | 100 AH (1C) |
| Max. Discharge | 100 AH (1C) |
| Cycle Life | >= 6 000 cycles @ 80 % DoD |
| Extensibility | Up to 15 batteries in parallel |
| Storage Temperature | –20 °C to +30 °C |
| Communication | CAN, RS485 |
| Dimensions (L×W×H) | 680.5*402.5*142 mm |
| Wi-Fi | PACE EX |
| Bluetooth | PACE EX |
| Weight | 42 ± 0.5 kg |
| Operating Temperature | Discharging: –20 °C ~ 55 °C |
| Mounting | Wall |
