Description

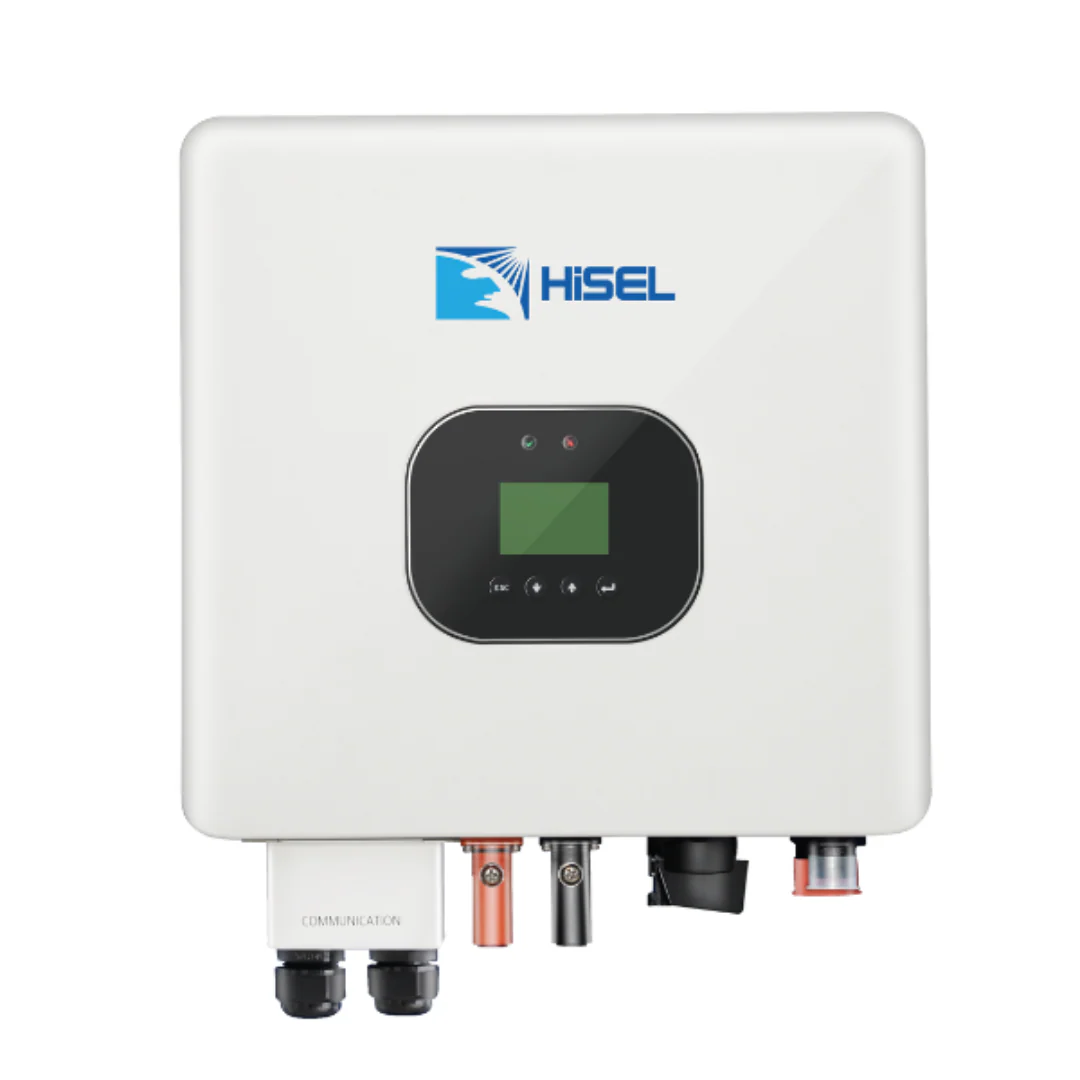

Single Phase Hybrid Inverter HI-6K-SL
The HiSEL HI-6K-SL SERIES is a versatile and lightweight hybrid inverter designed for seamless integration with photovoltaic and energy storage systems. Weighing only 20 kg, it supports easy installation and can operate in parallel with up to 6 inverters, making it suitable for both residential and commercial setups.
Key Features
- Friendly & Simple Design: Streamlined design ensures user-friendly operation and aesthetic appeal.
- Seamless Switching (≤10ms): Provides uninterrupted power supply during transitions between energy sources.
- Dual MPPT (Maximum Power Point Tracking): Maximizes solar energy harvesting efficiency from multiple PV arrays.
- Natural Heat Dissipation: Operates with low noise levels, ensuring a quiet and efficient performance.
- IP65 Protection Level: Durable design withstands dust and water, suitable for outdoor installations.
- 48V DC Low Battery Voltage: Ensures compatibility with a wide range of low-voltage batteries for energy storage.
- Alloy Enclosure: Robust and lightweight material ensures durability and heat resistance.
- High PV Capacity (9000W): Supports up to 9 kW of solar panel input, catering to high-energy demands.
Specifications
| Technical Data | HI-6K-SL |
| PV String Input Data | |
| Max. DC input power | 9000W |
| Max. DC input voltage | 550V |
| Nominal input voltage | 360V |
| MPPT working voltage range | 90V-550V |
| Number of independent MPPT/strings per MPPT | 2/1 |
| MPPT max. current | 15A/15A |
| Start-up voltage | 150V |
| AC Output/Input Data (On-grid) | |
| Nominal output apparent power | 6000W |
| Max. output apparent power | 6600VA |
| Nominal output voltage | 230V/190V-265V |
| Nominal output frequency | 50Hz/60Hz |
| Rated output current | 26A |
| Max. output current | 29A |
| Power factor | -0.8 +0.8 (adjustable) |
| THDI | <3% (Nominal Output) |
| Grid system pattern | L+N+PE |
| Max. apparent power from utility grid | 11000VA |
| Max.AC current from utility grid | 48A |
| Back-up Output Data (UPS) | |
| Nominal output apparent power | 6000VA |
| Max. output apparent power | 7000VA,10s |
| Nominal output voltage | 208V,220V,230V,240V |
| Nominal output frequency | 50Hz/60Hz |
| Output THDV | <3% |
| Automatic switch time | <10ms |
| Battery Input Data | |
| Battery type | Li-ion/Lead-acid |
| Battery voltage range | 42V~59V |
| Max. charging/discharging current | 100A |
| Charging strategy for Li-ion battery | Self-adaption to BMS |
| Efficiency | |
| Max. efficiency | 98% |
| Europe efficiency | 97.5% |
| Max. battery to load efficiency | 94% |
| Protection | |
| Anti islanding protection | Yes |
| Insulation impedance protection | Yes |
| RCD detection | Yes |
| PV reverse polarity protection | Yes |
| Output over voltage protection | Yes |
| Output over current protection | Yes |
| General Data | |
| Dimensions (L/W/H)in mm | 375/250/363 |
| Weight | 20kg |
| Operation temperature range | -25°C~60°C |
| Heat dissipation mode | Natural |
| IP Class | IP 65 |
| Maximum altitude | 4000m |
| Self-Consumption night | <3W |
| Features | |
| LCD display | Yes |
| Communication interface | WIFI/4G/USB/CAN/RS485 |
The HISEL HI-6K-SL SERIES Hybrid Inverter is an excellent choice for reliable, efficient, and scalable energy management in solar and storage systems. Its compact size, intelligent design, and robust features make it a perfect solution for modern energy needs.
High-Efficiency 6KW Hybrid Solar Inverter
The Hisel HI-6K-SL-6000W Hybrid Inverter is engineered to convert solar energy into usable electricity with exceptional efficiency. By intelligently managing power from solar panels, batteries, and the national grid, it ensures your appliances receive a stable and continuous power supply throughout the day.
Its advanced hybrid technology reduces dependence on conventional electricity while allowing users to take full advantage of renewable solar energy, resulting in lower electricity costs and a greener lifestyle.
Intelligent Hybrid Energy Management
One of the standout features of the Hisel HI-6K-SL-6000W is its smart energy management system. The inverter automatically determines the most efficient power source based on real-time conditions.
Key advantages include:
- Prioritizes solar energy to reduce electricity expenses.
- Charges batteries efficiently using solar or grid power.
- Provides uninterrupted backup during power outages.
- Automatically switches between power sources without interruption.
- Optimizes battery performance for longer service life.
This intelligent functionality ensures maximum utilization of solar energy while minimizing energy waste.
Reliable Backup Power During Load Shedding
Frequent power outages can disrupt daily life and business operations. The Hisel HI-6K-SL-6000W Single Phase Hybrid Inverter offers fast and reliable backup power by automatically switching to battery mode whenever grid electricity fails.
This ensures uninterrupted operation of essential appliances such as:
- LED lights
- Fans
- Refrigerators
- Televisions
- Desktop computers
- Internet routers
- CCTV security systems
- Water pumps
- Home office equipment
With dependable backup capabilities, you can continue your daily activities without interruption.
Compatible with Lithium and Lead-Acid Batteries
The Hisel HI-6K-SL-6000W is designed for maximum flexibility by supporting multiple battery technologies. Whether you already own batteries or are planning a new installation, this inverter provides excellent compatibility.
Supported battery types include:
- Lithium Batteries
- LiFePO4 Batteries
- Lead-Acid Batteries
- Gel Batteries
- AGM Batteries
This flexibility allows users to select the battery solution that best fits their budget and energy requirements.
Pure Sine Wave Output for Appliance Protection
The inverter produces a pure sine wave output, ensuring clean, stable electricity for sensitive electronic devices. Unlike modified sine wave systems, pure sine wave technology protects expensive appliances from voltage fluctuations while improving their performance and lifespan.
Ideal for powering:
- Smart TVs
- Computers
- Medical equipment
- Audio systems
- Printers
- Home automation devices
- Networking equipment
Stable power helps reduce the risk of equipment damage caused by inconsistent electricity.
User-Friendly LCD Display
Monitoring your solar power system is simple thanks to the inverter’s integrated LCD display. Users can easily access important operating information, including:
- Solar generation
- Battery charging status
- Battery voltage
- Grid status
- Load percentage
- System operating mode
- Error notifications
- Performance statistics
The easy-to-read display enables users to monitor energy production and system health at a glance.
Advanced Safety Protection
Safety is a priority with the Hisel HI-6K-SL-6000W Hybrid Solar Inverter. It includes multiple built-in protection mechanisms that safeguard both the inverter and connected appliances.
Protection features typically include:
- Overload protection
- Short circuit protection
- Over-voltage protection
- Under-voltage protection
- Over-temperature protection
- Battery overcharge protection
- Deep discharge protection
- Intelligent fault detection
These advanced safety systems improve overall reliability while extending equipment lifespan.
Ideal Applications
The Hisel HI-6K-SL-6000W is suitable for a wide range of residential and commercial applications, including:
- Residential homes
- Villas
- Apartments
- Offices
- Retail stores
- Clinics
- Educational institutions
- Small businesses
- Solar backup systems
- Off-grid and hybrid solar installations
Its powerful 6KW capacity makes it ideal for users seeking dependable solar energy and backup power.
Benefits of Choosing the Hisel HI-6K-SL-6000W
Choosing this hybrid inverter provides numerous long-term advantages:
- Lower monthly electricity bills
- Efficient use of solar energy
- Intelligent energy management
- Reliable backup during power failures
- Pure sine wave output
- Broad battery compatibility
- Stable and continuous performance
- Easy installation and operation
- Enhanced appliance protection
- Long-lasting durability
These features make it a valuable investment for anyone looking to improve energy efficiency and reduce reliance on the grid.
Why Buy the Hisel HI-6K-SL-6000W Single Phase Hybrid Inverter?
The Hisel HI-6K-SL-6000W Single Phase Hybrid Inverter 6KW combines advanced hybrid technology, intelligent energy management, reliable backup performance, and high conversion efficiency into one dependable solution. Whether you’re installing a new solar power system or upgrading an existing one, this inverter offers the performance, flexibility, and durability needed for modern energy requirements.
With support for multiple battery types, pure sine wave output, advanced safety features, and seamless integration with solar panels and the electrical grid, the Hisel HI-6K-SL-6000W is an excellent choice for homeowners and businesses seeking efficient, uninterrupted, and environmentally friendly power.
Invest in the Hisel HI-6K-SL-6000W 6KW Hybrid Solar Inverter today and enjoy greater energy independence, lower electricity costs, and dependable power every day.
