Description

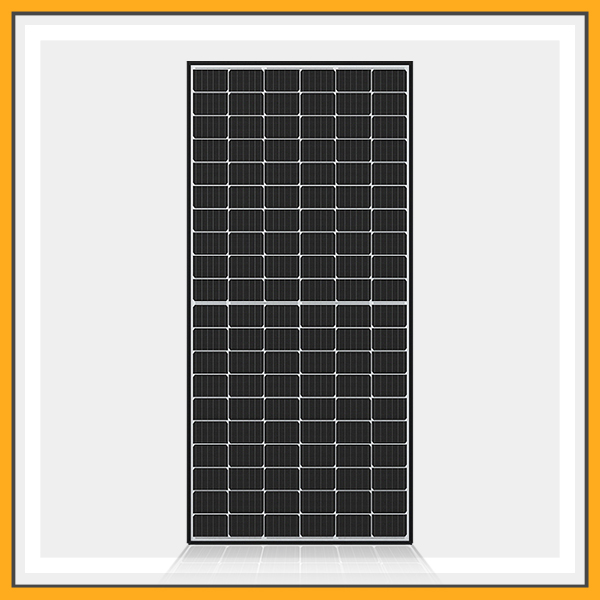

Jinko Solar is a global leader in solar module manufacturing, delivering high-efficiency energy solutions across residential, commercial, and utility sectors worldwide. The Jinko Solar 535W Tiger Pro 72HC Mono Facial module leverages advanced Mono PERC technology and a half-cell design to maximize power generation while minimizing system costs.
Engineered for durability, this Jinko Solar panel excels in hot climates and low-light conditions, reducing the Levelized Cost of Energy (LCOE) through superior efficiency and low thermal degradation. Designed to withstand extreme weather, Jinko Solar panels provide long-term reliability for diverse installations across the globe. Trust Jinko Solar technology for reliable, sustainable energy output over decades of operation. With high energy density, Jinko Solar modules remain a top-tier choice for modern solar projects.
Technical Specifications
| Parameter | Standard Test Conditions (STC) | Nominal Operating Cell Temp (NOCT) |
| Maximum Power (Pmax) | 535 Wp | 398 Wp |
| Maximum Power Voltage (Vmp) | 40.63 V | 37.91 V |
| Maximum Power Current (Imp) | 13.17 A | 10.50 A |
| Open-Circuit Voltage (Voc) | 49.34 V | 46.57 V |
| Short-Circuit Current (Isc) | 13.79 A | 11.14 A |
| Module Efficiency | 20.75% | — |
| Operating Temperature | -40°C to +85°C | — |
| Maximum System Voltage | 1000/1500V DC (IEC) | — |
| Max Series Fuse Rating | 25 A | — |
| Power Tolerance | 0 to +3% | — |
| NOCT Rating | 45 ± 2°C | — |
Temperature Coefficients
-
Pmax Temperature Coefficient: -0.35% / °C
-
Voc Temperature Coefficient: -0.28% / °C
-
Isc Temperature Coefficient: +0.048% / °C
Key Benefits
-
Mono PERC & 72 Half-Cell Design: Reduces internal resistance, mitigates hotspot risk, and optimizes current flow.
-
Low-Light & Hot Climate Performance: Delivers steady output during early mornings, overcast weather, and extreme heat.
-
Built for Longevity: Constructed with high-strength tempered glass and a corrosion-resistant anodized aluminum frame to withstand heavy snow and wind loads.
-
Cost-Efficient: Delivers higher power density to lower installation costs, mounting hardware needs, and overall system setup expenses.
