Description

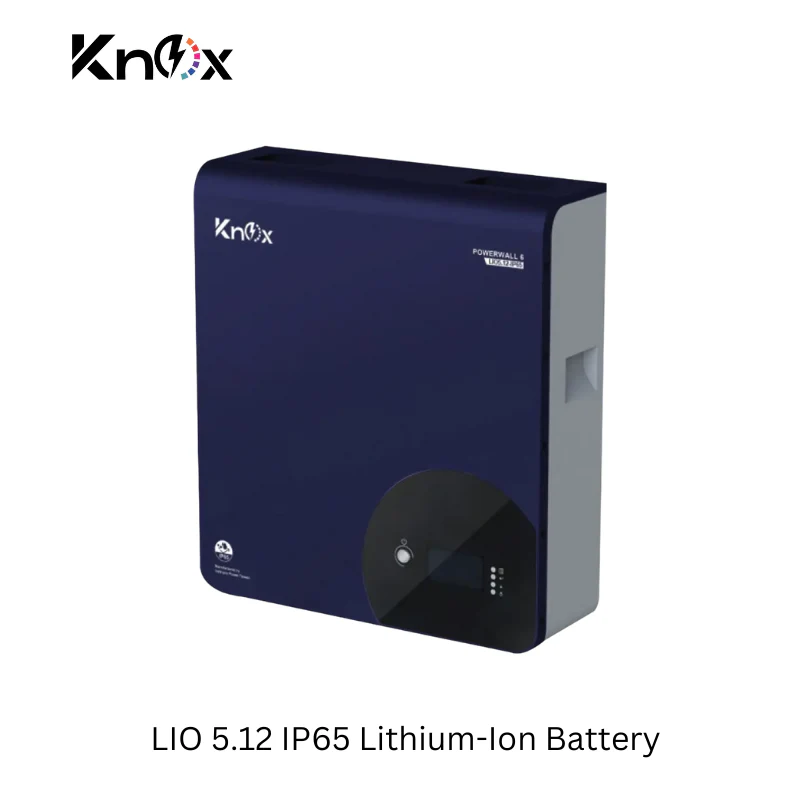

The Knox Power Wall LIO 5.12 IP65 is a premium energy storage system engineered to provide dependable, highly efficient, and durable power for both homes and businesses. Boasting a robust 5.6 kWh capacity, this advanced battery guarantees a consistent, uninterrupted electrical supply, making it an ideal choice for off-grid setups, emergency backup, and solar energy retention.
Key Features
-
Cutting-Edge LiFePO4 Technology
Features Lithium Iron Phosphate (LiFePO4) chemistry to ensure maximum thermal stability, enhanced safety, and an extended operational lifespan.
-
Superior Charge & Discharge Performance
Delivers swift and dependable operation, supporting a continuous charge rate of up to 50A and a discharge rate of 100A, with a peak charging voltage of 57.6V.
-
IP65 Weatherproof & Intelligent BMS
Built with a durable IP65-rated housing to safeguard against dust and moisture, alongside integrated RS485, RS232, and CAN ports for seamless smart Battery Management System (BMS) connectivity.
-
Compact, Modular Construction
Designed with a space-saving footprint (140 x 450 x 500 mm) and a manageable weight of 43 kg. The system is fully scalable, allowing you to easily link up to 16 units in parallel to expand your setup.
Technical Specifications
| Product Metric | Specifications & Parameters |
| Model Name | LIO 5.12-IP65 (Knox Power Wall Series) |
| Core Cell Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Rated Voltage | 51.2 V |
| Storage Capacity | 100 Ah |
| Peak Continuous Charge / Discharge | 50A / 100A |
| Maximum Charge Voltage | 57.6 V |
| Minimum Discharge Voltage | 43.2 V |
| Maximum Scalability (Parallel) | Up to 16 Units |
| Dimensions (D x W x H mm) | 140 x 450 x 500 mm |
| Total Net Weight | 43 kg |
| Ingress Protection Rating | IP65 |
| Smart Communication Protocols | RS485, RS232, CAN |
| Compliance & Safety Standards | EN IEC 61000-6-3, EN IEC 61000-6-1, EN IEC 61000-3-2, IEC 61000-3-3, UN38.3 |
