Maxpower MONO 150W

Description

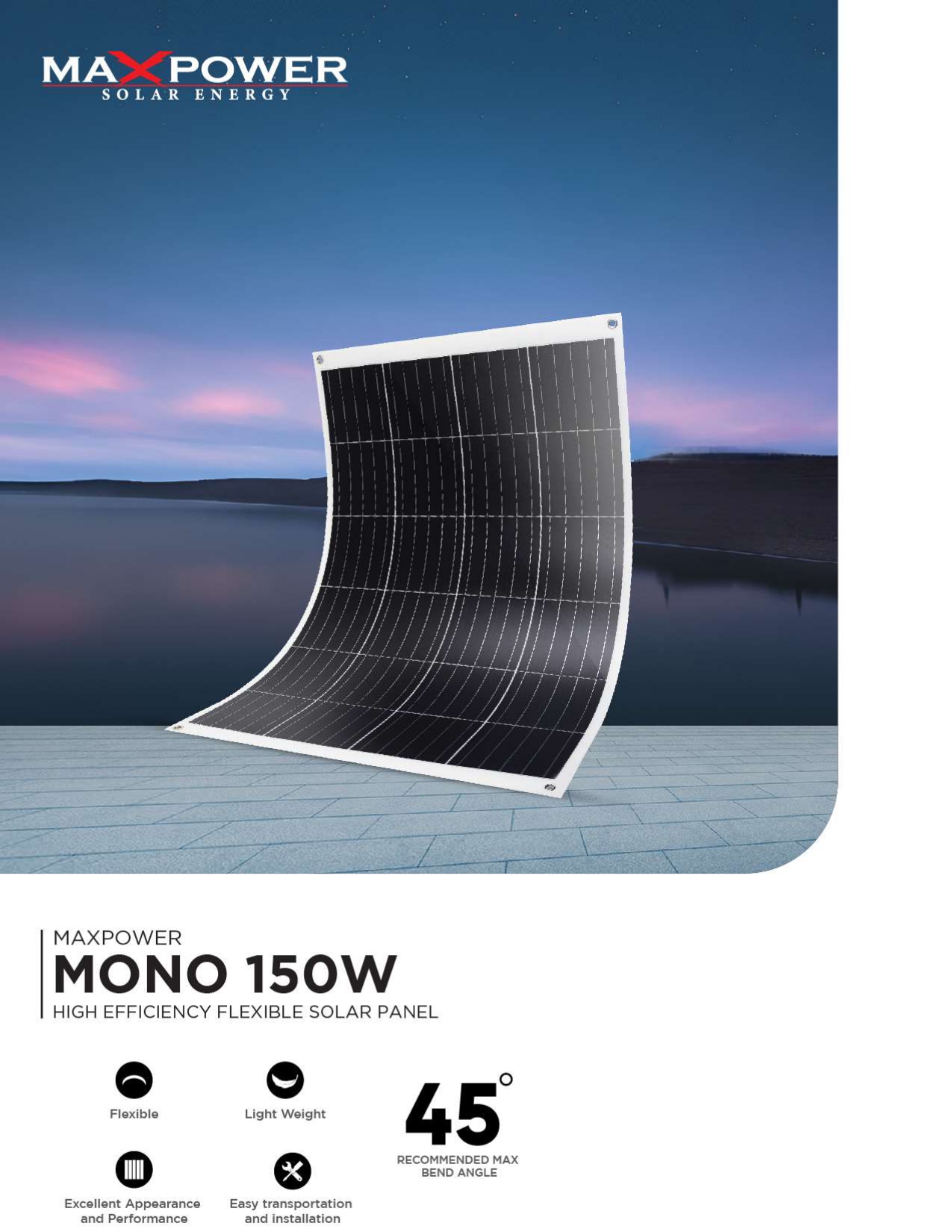

MaxPower Mono 150W Flexible Solar Panel

The MaxPower Mono 150W Flexible Solar Panel is a lightweight, high-efficiency solar module designed for curved and uneven surfaces. Built with advanced monocrystalline silicon cells and durable ETFE material, it delivers reliable power generation while offering exceptional flexibility with a recommended maximum bend angle of 45°. Its ultra-thin, lightweight design makes it ideal for RVs, boats, cabins, caravans, rooftops, and off-grid solar applications.

Key Features

✔ 150W High Power Output
✔ 45° Maximum Bend Angle for flexible installation on curved surfaces
✔ Lightweight Design – Only 1.7 kg
✔ ETFE Surface Material – Durable, UV-resistant, and easy to clean
✔ IP67 Junction Box – Sealed waterproof protection
✔ Monocrystalline Silicon Cells for higher efficiency
✔ Easy Transportation & Installation
✔ Excellent Appearance & Performance

Specifications

• Model: Mono 150W
• Maximum Power (Pmax): 150W
• Open Circuit Voltage (Voc): 16.32V
• Short Circuit Current (Isc): 10.07A
• Maximum System Voltage: 1000V DC
• Current at Pmax (Imp): 9.8A
• Voltage at Pmax (Vmp): 15.32V
• Cell Type: Monocrystalline Silicon
• Solar Cells: 24 Cells
• Dimensions: 1050 × 678 × 3 mm
• Weight: 1.7 kg
• Output Cable Length: 1000 mm
• Junction Box: IP67 Waterproof
• Construction: ETFE Material
• Flexibility: Recommended Max Bend Angle 45°

Applications

• RVs & Motorhomes
• Boats & Marine Systems
• Caravans
• Camping & Outdoor Use
• Off-Grid Solar Systems
• Curved Roof Installations
• Portable Solar Power Solutions
